How to configure ADAM 4570

TABLE OF CONTENTS

• 1. Installing Advantech EKI Device Configuration Utility
• 2. Powering the ADAM
• 3. Connecting to the network
• 4. Configuring the ADAM

1. Installing Advantech EKI Device Configuration Utility

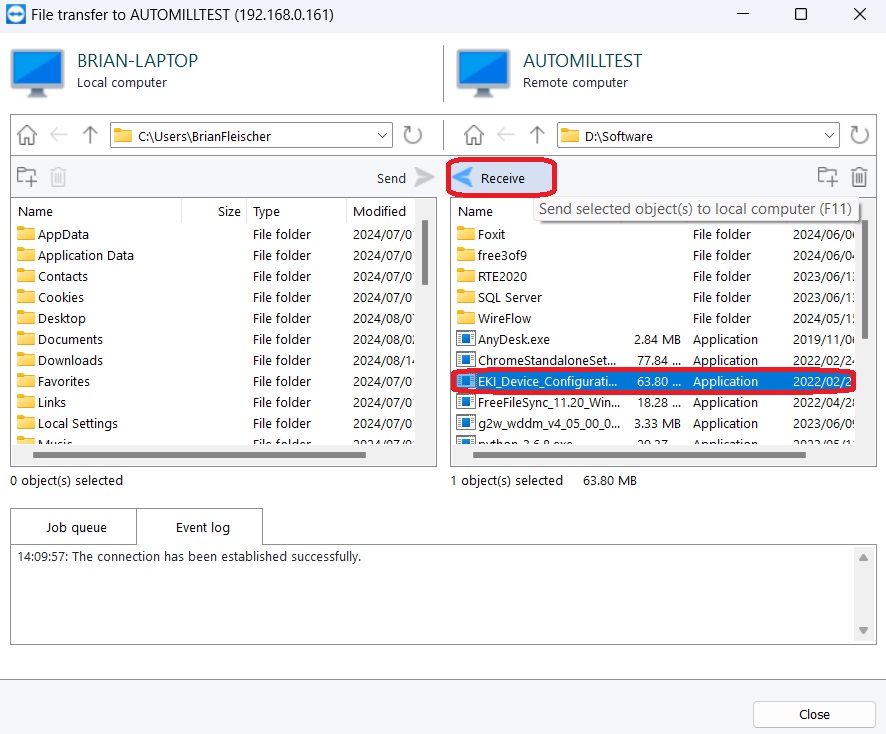

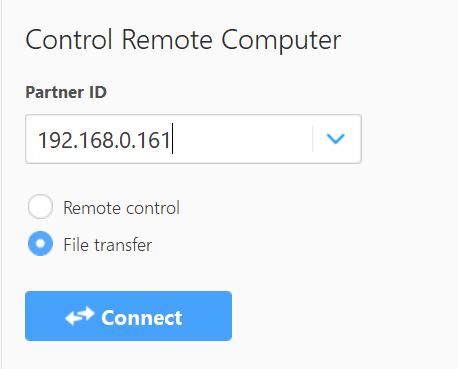

• Connect to the AUTOMILLTEST server via TeamViewer for File transfer

• Enter "K@!r0s" as the password
• Navigate to "D:\Software" and select the "EKI_Device_Configuration_Utility_v3.04_20211208" application and click "Receive"

• Run the installer and select Next, I Agree, and Finish to complete the install
• Once installed, run the application

2. Powering the ADAM

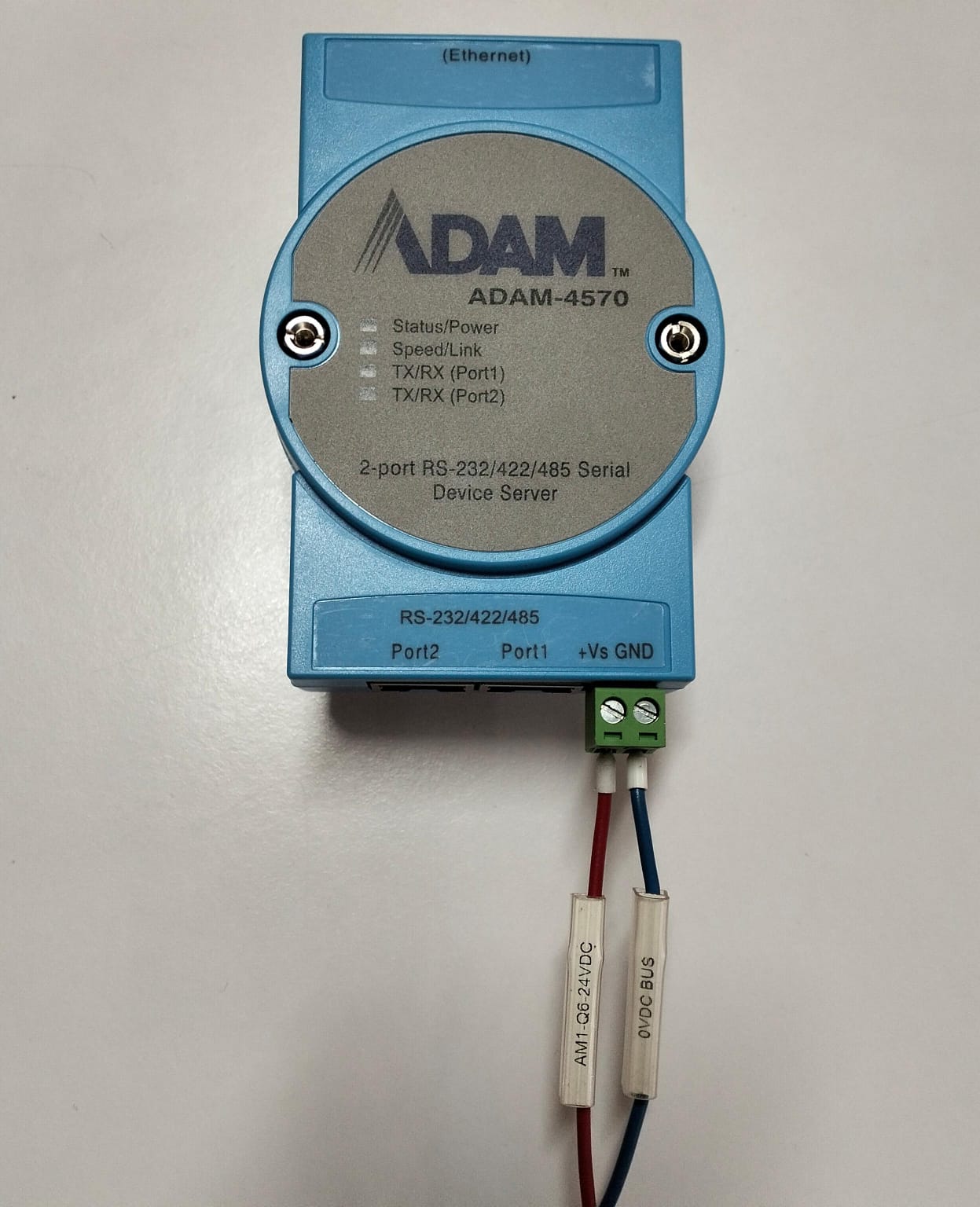

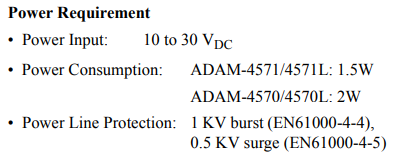

• Connect a 10 to 30V DC power supply to the ADAM as shown

• If powered correctly, the Status/Power LED will turn on

3. Connecting to the network

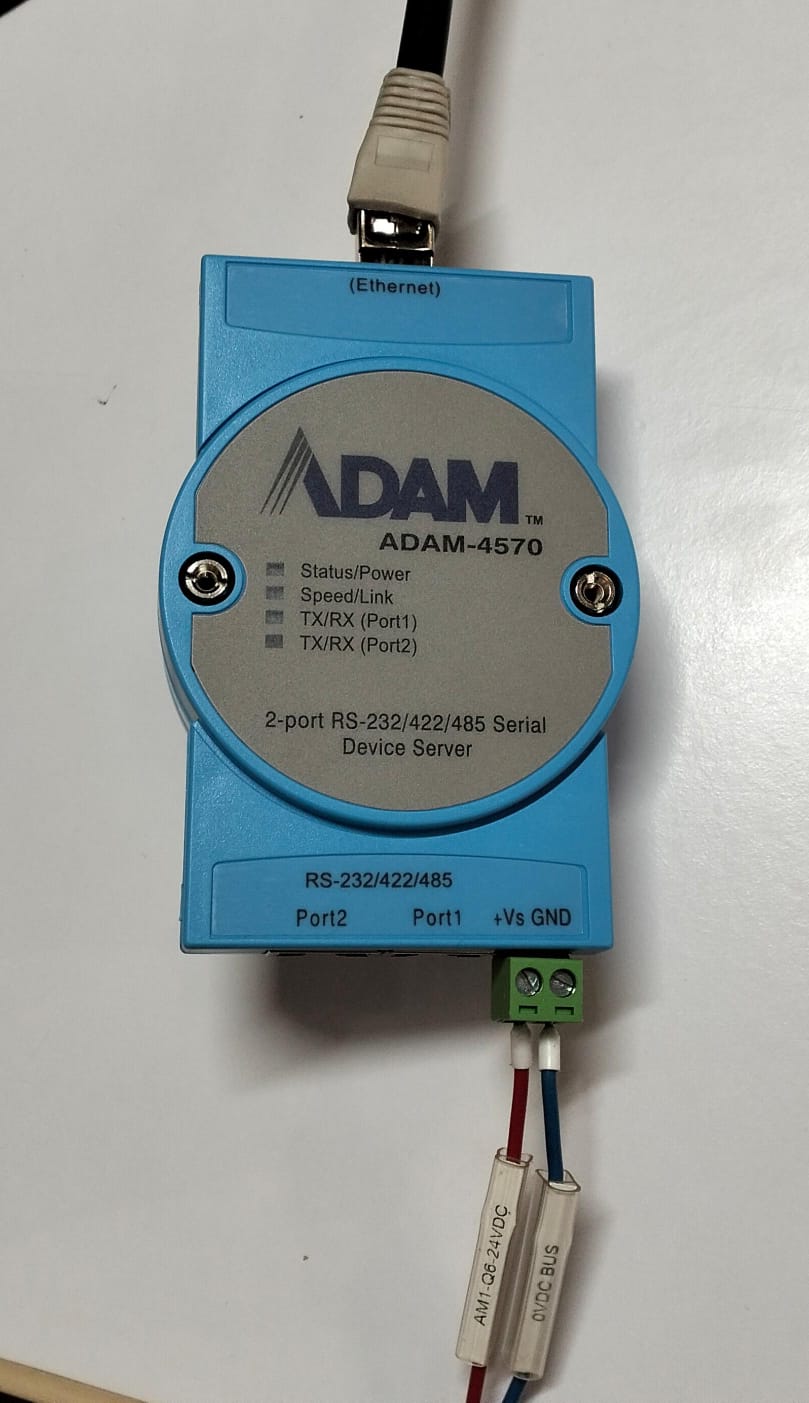

• Connect an ethernet cable to the (Ethernet) port on the ADAM as shown

• If connected correctly, the Speed/Link LED will turn on and flash

4. Configuring the ADAM

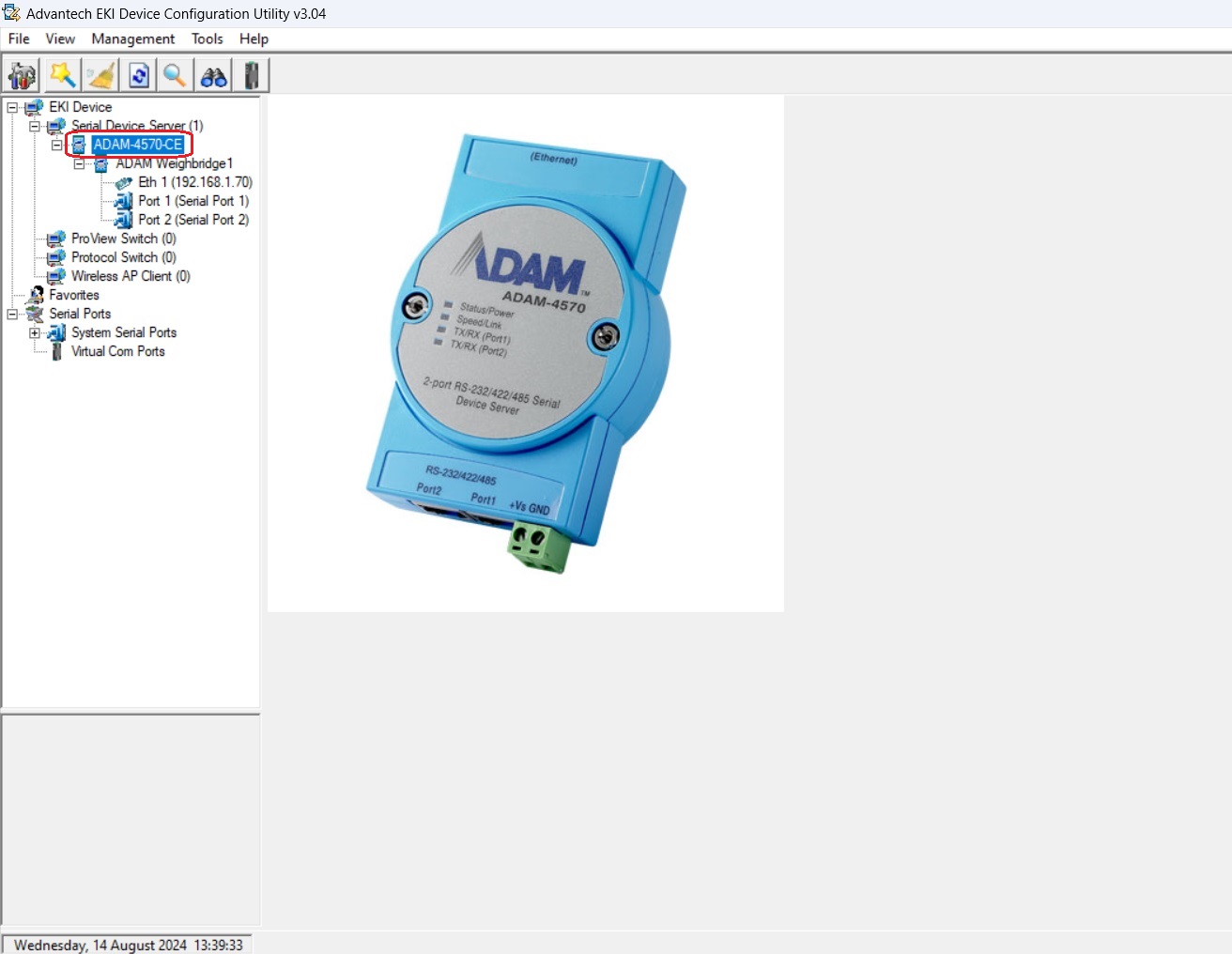

• Once the ADAM is connected to the same network as your pc, it should become discoverable on the software

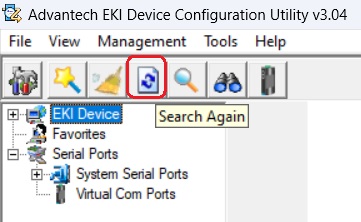

• If the ADAM is not visible, click the "Search Again" button until it is

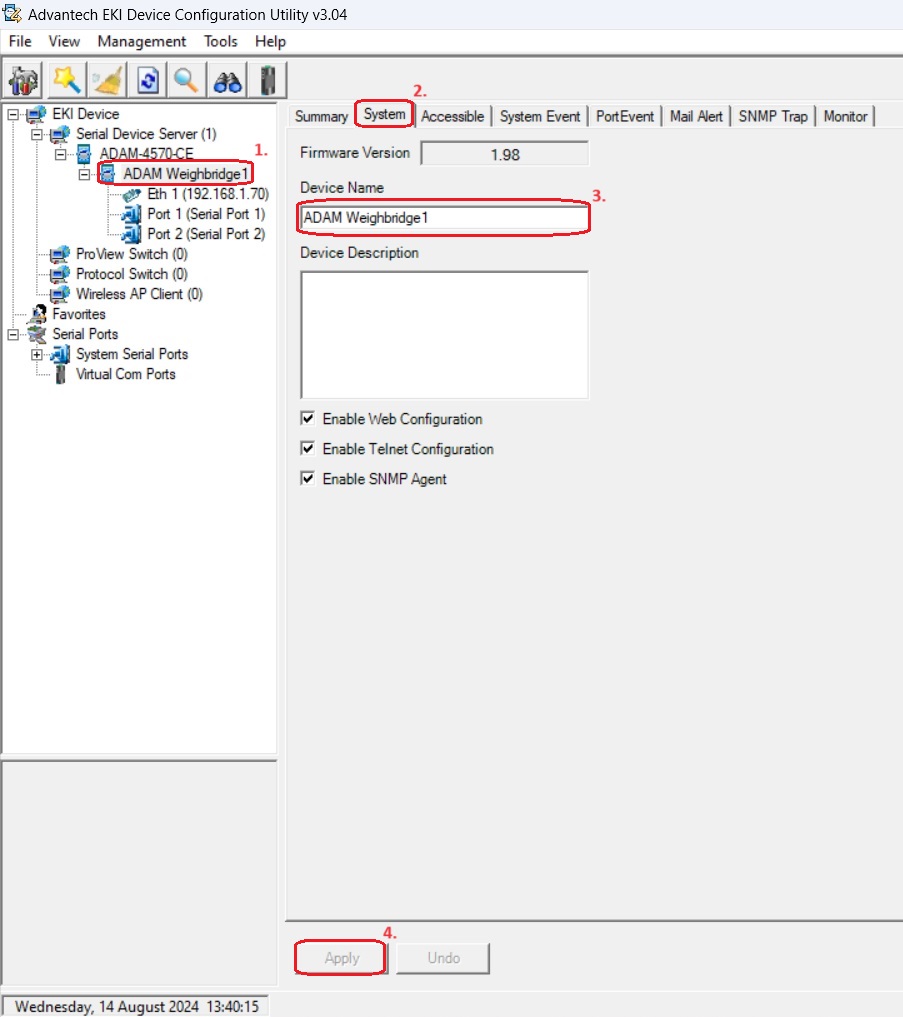

• Click on the ADAMs device name and navigate to it's system properties
• Enter the appropriate Device Name to rename the device and click Apply

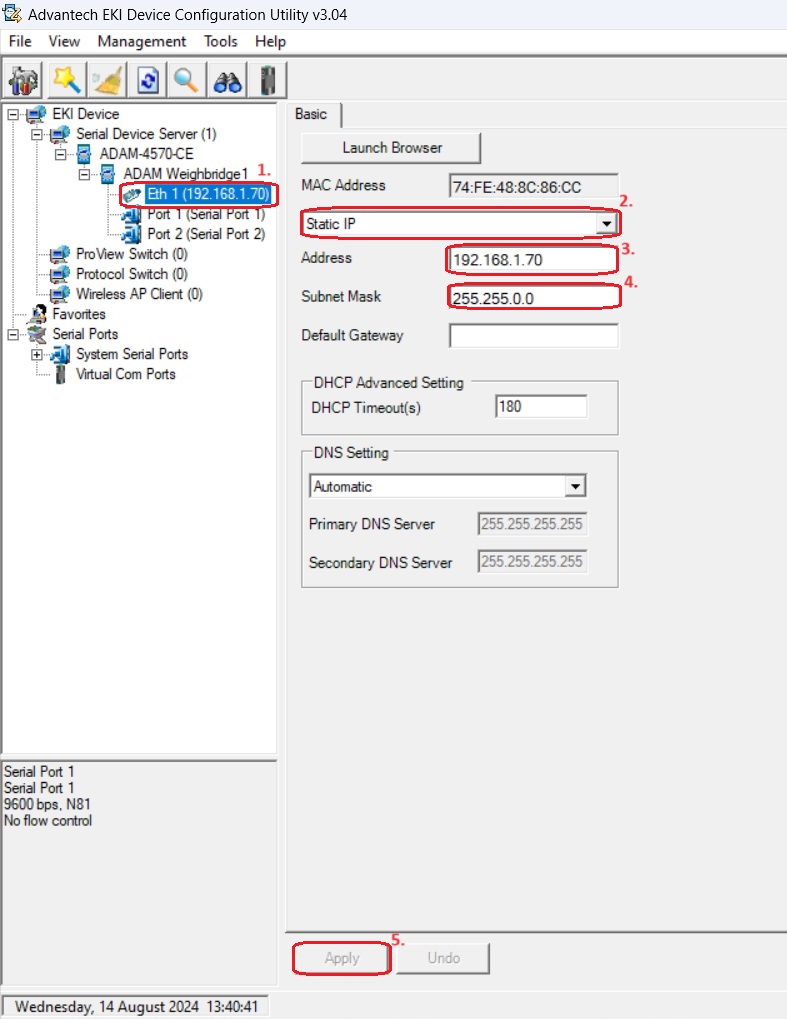

• Click on "Eth 1"
• Click the drop down and select "Static IP"
• Set the appropriate Address and Subnet Mask
• Click Apply

• Click on "Port 1"
• Navigate to Operation
• Click the drop down and select "USDG Mode"
• Click Apply All Ports

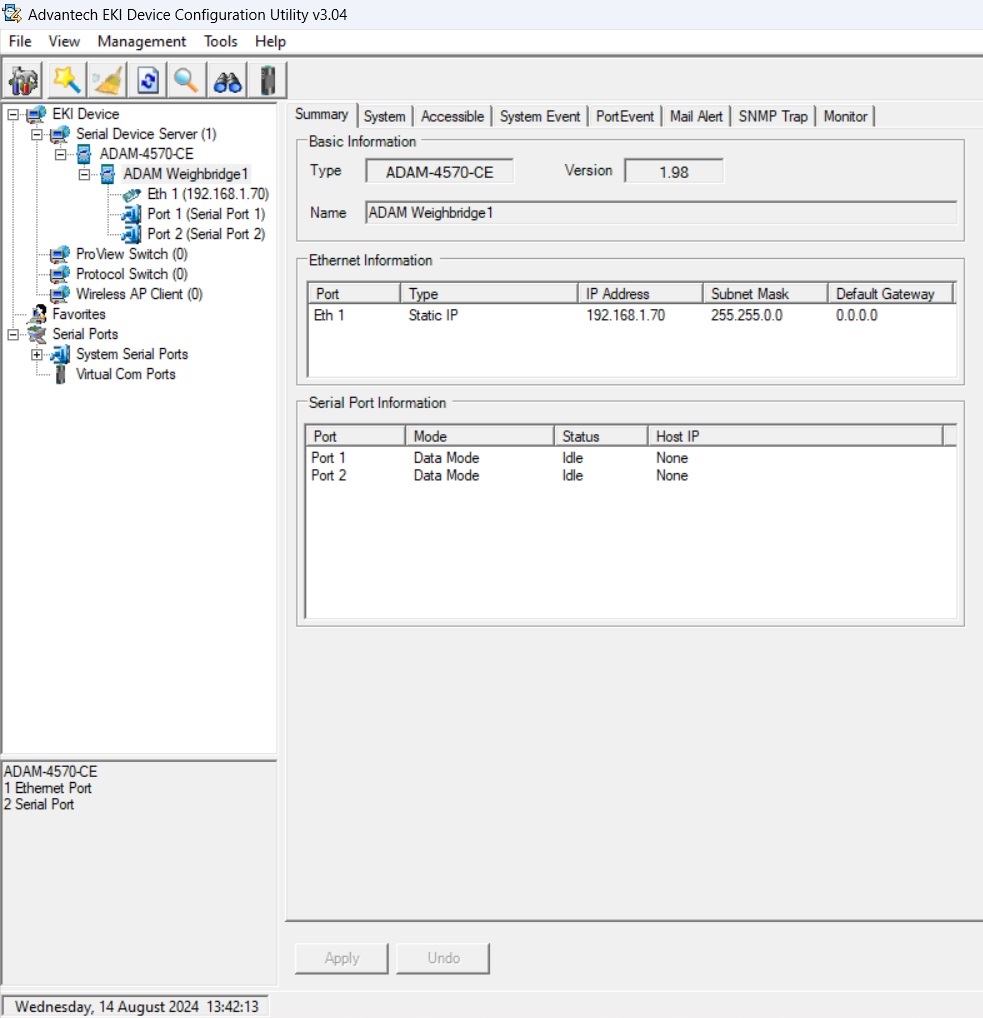

• You can double check that the config is correctly setup by navigating to the device's summary
